The LED Cube Display is a creative cubic screen that breaks the limits of traditional flat displays. It features a high refresh rate for smooth, blur-free visuals, a long lifespan to reduce maintenance costs, and offers 360° all-around viewing with fully customizable content.
Add Your Heading Text Here
Add Your Heading Text Here
Craftsmanship
Featuring our proprietary POB surface treatment, the screen is seamlessly spliced. It serves as a piece of art when off, and displays vivid, high-definition dynamic visuals when on, perfectly blending creativity with practicality. Fully customizable in any style or size.
Add Your Heading Text Here
APPIications

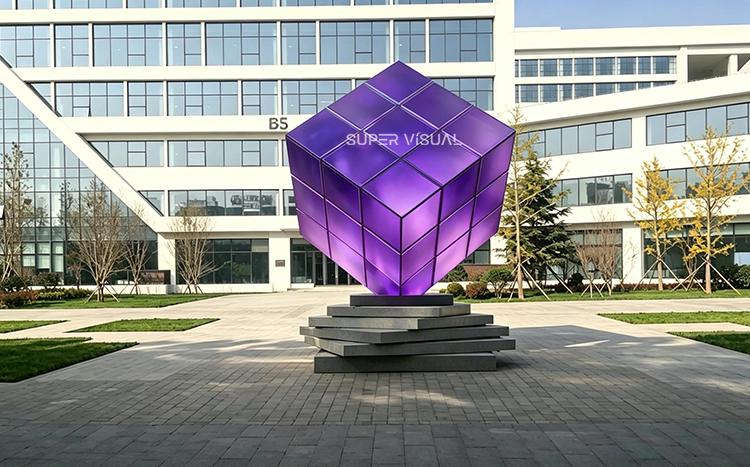

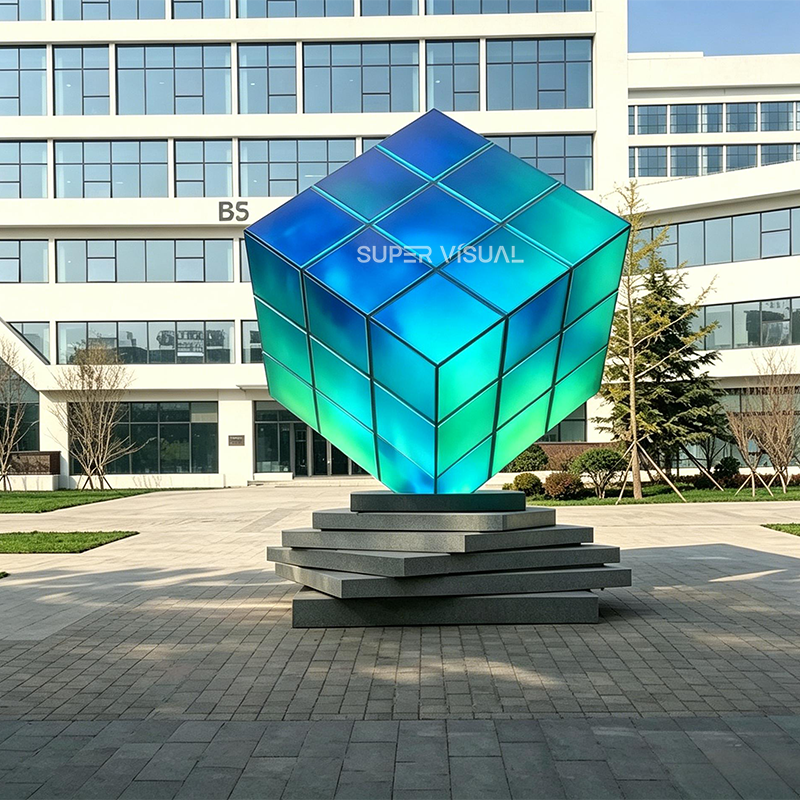

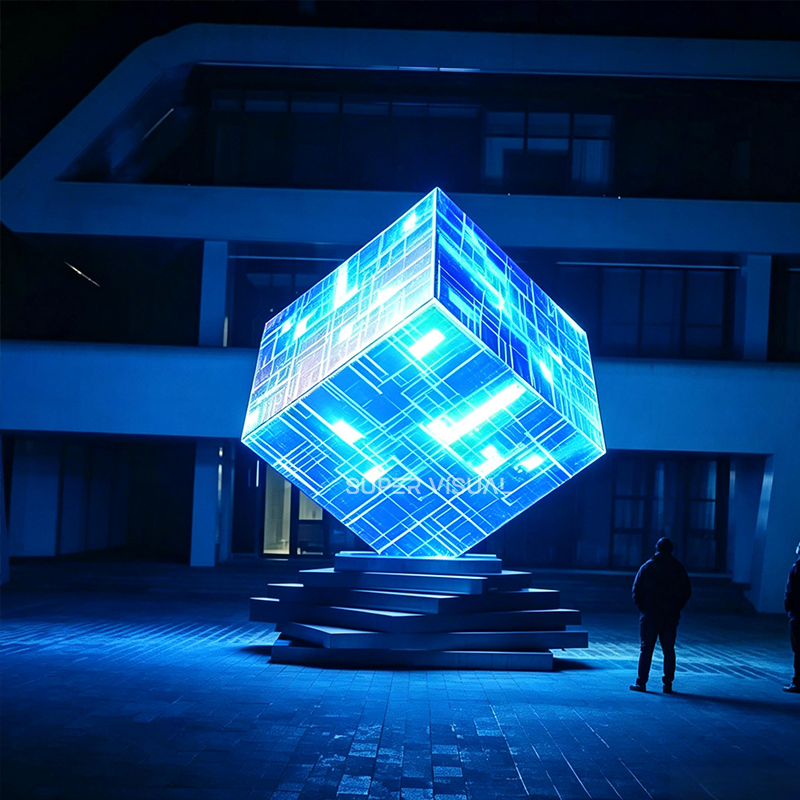

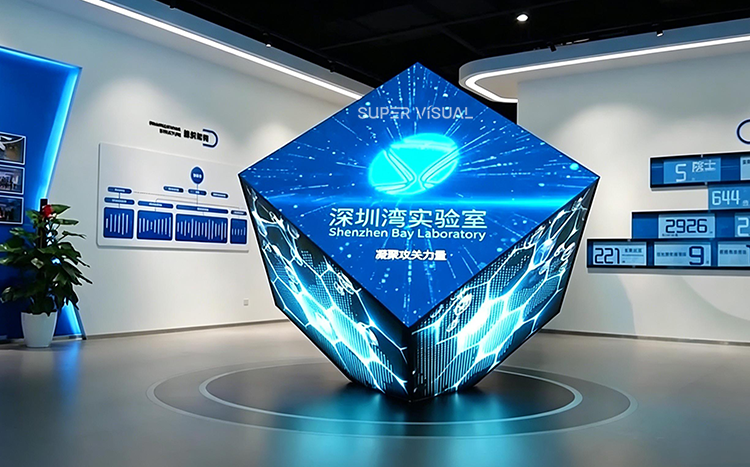

Widely used in corporate showrooms, tech museums, commercial atriums, and art spaces where a high-tech and sophisticated atmosphere is desired.
Add Your Heading Text Here

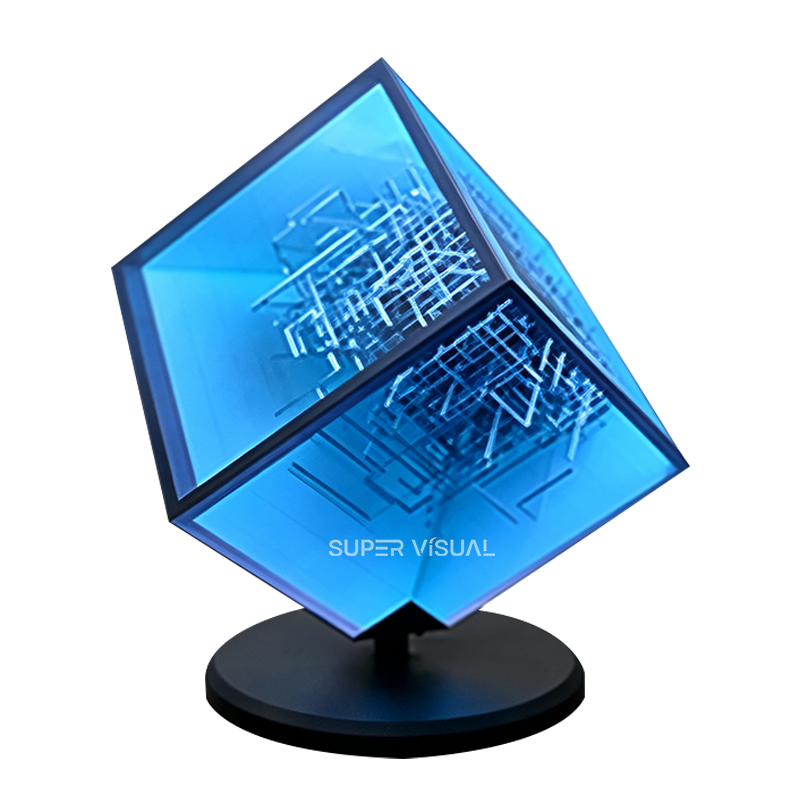

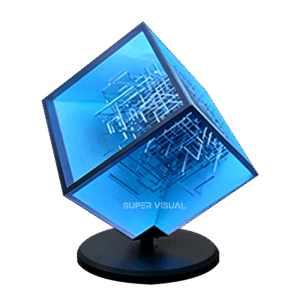

LED Cube Display
| LED Cube display specification | ||||||
| Physical parameters | Pixel Pitch | P1.25 | P1.5 | P1.86 | P2 | P2.5 |
| Size | Customized | |||||
| Pixel Density | 640000Dots/㎡ | 444444Dots/㎡ | 289050Dots/㎡ | 250000Dots/㎡ | 160000Dots/㎡ | |
| LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | |
| Physical Gap | ≤0.3mm | |||||
| Screen Weight | ≤30kg/㎡ | |||||
| Module Fixed Method | Magnetic | |||||
| Cabinet Material | Sheet Metal Structure | |||||
| Optoelectronic Parameters | Refresh Rate | ≥3840Hz | ||||
| Grey Scale | ≥14Bit | |||||
| Ave. Power Consumption | <220W/㎡ | |||||
| Max. Power Consumption | <600W/㎡ | |||||
| Module Voltage | DC4.2V-5V | |||||
| Input Voltage | AC110V-AC220V | |||||
| Brightness | ≥600 nits/㎡ | |||||
| Brightness Control | Auto-Adjusting 0-100 levels | |||||
| Color Temperature | 5500K-9300K | |||||
| The Best Viewing Distance | 1M-50M | |||||
| Viewing Angle | (H)140°/(V)140° | |||||
| Application Parameters | Working Temperature | -20℃～+60℃ | ||||
| Working Humidity | 10%-95% | |||||
| LED Life Span | ≥100,000 Hours | |||||
| IP Rating | IP31 / IP43 | |||||
| Maintenance Mode | Front Maintenance | |||||
| LED Control system | Mooncell/Kystar/ Nova/ Colorlight | |||||
